2008 Yamaha Outboard F115 F115A LF115 FL115A Parts Catalogue

1G68V-100E1 2G68V-100E1 ( ) A1 F115TR’08/TRG (68V7) LF115TR’08/TRG (68W7) F115AET’08 (68V7) FL115AET’08 (68W7)

F115TR/F115TRG/F115AET LF115TR/LF115TRG/FL115AET PARTS CATALOGUE ©2007 by Yamaha Motor Co., Ltd. 1st edition, March 2007 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in Japan.

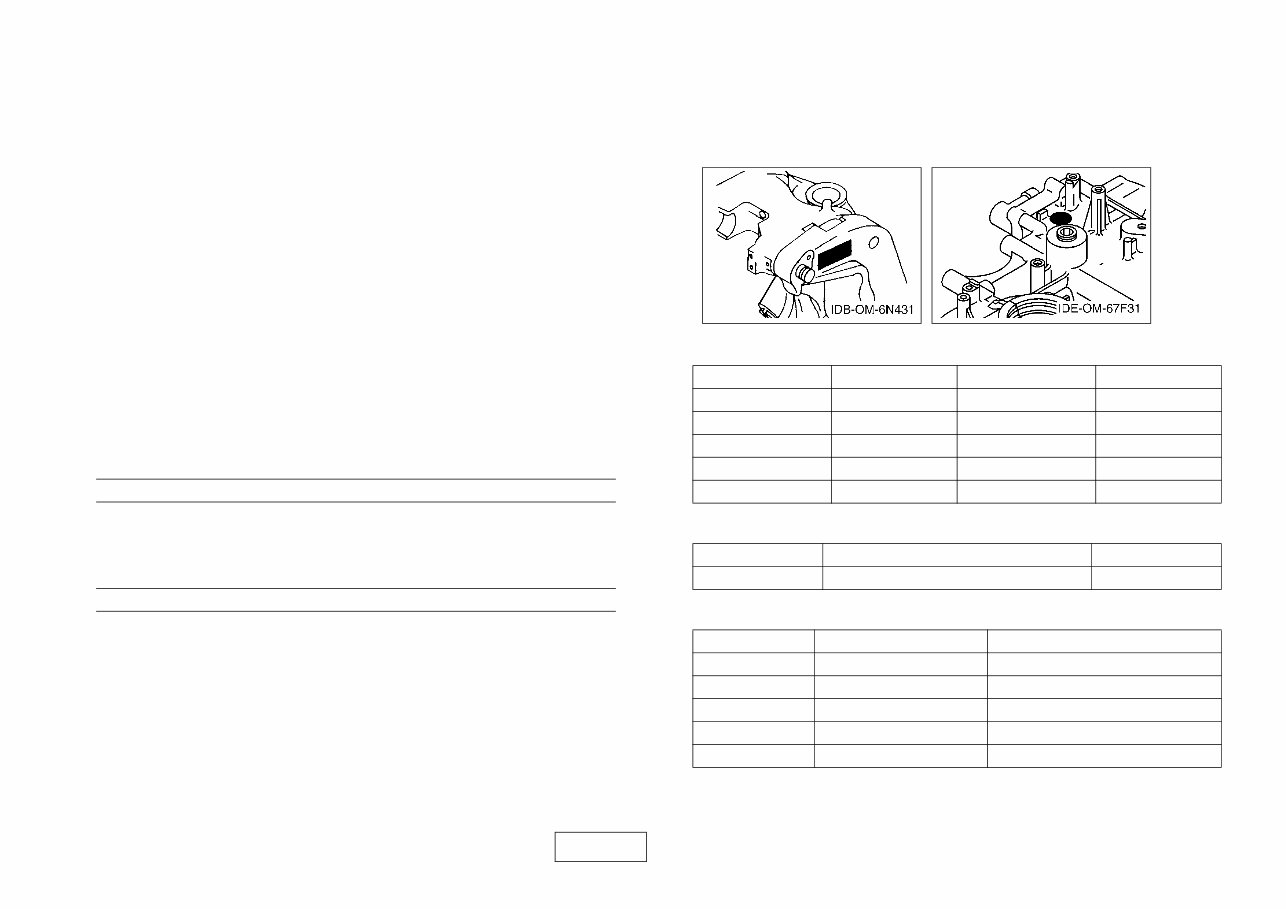

A2 FOREWORD This Parts Catalogue is related to the parts for the model(s) on the cover page. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly. 1. Modifications or additions which have been made after the issue of the Parts Catalogue will be announced in the Parts News. It is advisable that you make the necessary corrections to the Parts Catalogue according to the Parts News. 2. Abbreviations The following abbreviations are used in this Parts Catalogue. “UR” Use specified parts number. “UN” Use as many as needed. “AP” Alternate Parts “LM” Locally Made (Parts need to be ordered locally) “F#” Frame No. (Applicable machine No.) “O/S” Over Size 3. The number of components for assembly • Parts, which are to be supplied in an assembly, are listed with a dot (.) in front of the part name as shown below. • The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit. 4. Applicable colours of graphics are represented in the “REMARKS” as shown below. 5. Note that the illustrations for reference in finding parts numbers are not to be used for assembling. When assembling, please use the applicable service manual. 6. The asterisk (*) before a reference number indicates modified items after the first edition. 7. Applicable Serial No. Engine Serial No. 8. Applicable Engine Starting Serial No. 9. Applicable Colour Code 10. Quantity Column Information PART NO. DESCRIPTION Q’TY REMARKS 2F5–83310–60 FRONT FLASHER LIGHT ASSY 2 115–83311–60 .BULB (6V–18W) 1 PART NO. DESCRIPTION Q’TY REMARKS 2N4–24110–00–X5 FUEL TANK COMP. 2 MXR 3J1–24240–10 .GRAPHIC, FUEL TANK 1 FOR MXR Model Serial No. Model Serial No. F115 68V-1082891 F115A 68V-1082891 LF115 68W-1003581 FL115A 68W-1003581 Abbreviation Colour Name Colour Code DBN1 DARK BLUISH GRAY 1 008D Column No. Name Of Q’ty Column Applicable Model 1 68V7 F115TR,F115TRG,F115AET 2 68W7 LF115TR,LF115TRG,FL115AET

A3 CONTENTS SHEET1/2 TOP COWLING ..................................................................... A4 CYLINDER & CRANKCASE 1 .............................................. A6 CRANKSHAFT & PISTON .................................................... B1 CYLINDER & CRANKCASE 2 .............................................. B2 VALVE ................................................................................... B4 INTAKE 1 .............................................................................. B7 INTAKE 2 .............................................................................. C1 FUEL INJECTION NOZZLE .................................................. C3 FUEL INJECTION PUMP ...................................................... C5 FUEL 1 .................................................................................. C7 FUEL 2 .................................................................................. D2 GENERATOR ........................................................................ D3 ELECTRICAL 1 ..................................................................... D5 ELECTRICAL 2 ..................................................................... D6 ELECTRICAL 3 ..................................................................... E2 STARTING MOTOR .............................................................. E4 BOTTOM COWLING ............................................................. E6 CONTROL ............................................................................. F1 BRACKET 1 .......................................................................... F3 BRACKET 2 .......................................................................... F5 POWER TRIM & TILT ASSY 1 .............................................. F7 INDEX NUMERICAL INDEX ............................................................. G1 SHEET2/2 POWER TRIM & TILT ASSY 1 ............................................. A4* POWER TRIM & TILT ASSY 2 ............................................. A5* UPPER CASING ................................................................... A7* OIL PAN ................................................................................ B2* LOWER CASING & DRIVE 1 ................................................ B4* LOWER CASING & DRIVE 2 ................................................ C1* LOWER CASING & DRIVE 3 ................................................ C3* LOWER CASING & DRIVE 4 ................................................ C7* FUEL TANK 1 ....................................................................... D2* FUEL TANK 2 ....................................................................... D3* STEERING GUIDE ............................................................... D4* REMOTE CONTROL BOX ................................................... D5* REMOTE CONTROL ASSY 1 .............................................. D6* REMOTE CONTROL ASSY 2 .............................................. E2* REMOTE CONTROL ASSY 3 .............................................. E5* METER ................................................................................. F1* SWITCH & PANEL 1 ............................................................. F3* SWITCH & PANEL 2 ............................................................. F4* REPAIR KIT 1 ....................................................................... F5* REPAIR KIT 2 ....................................................................... F6* INDEX NUMERICAL INDEX ............................................................. G1*

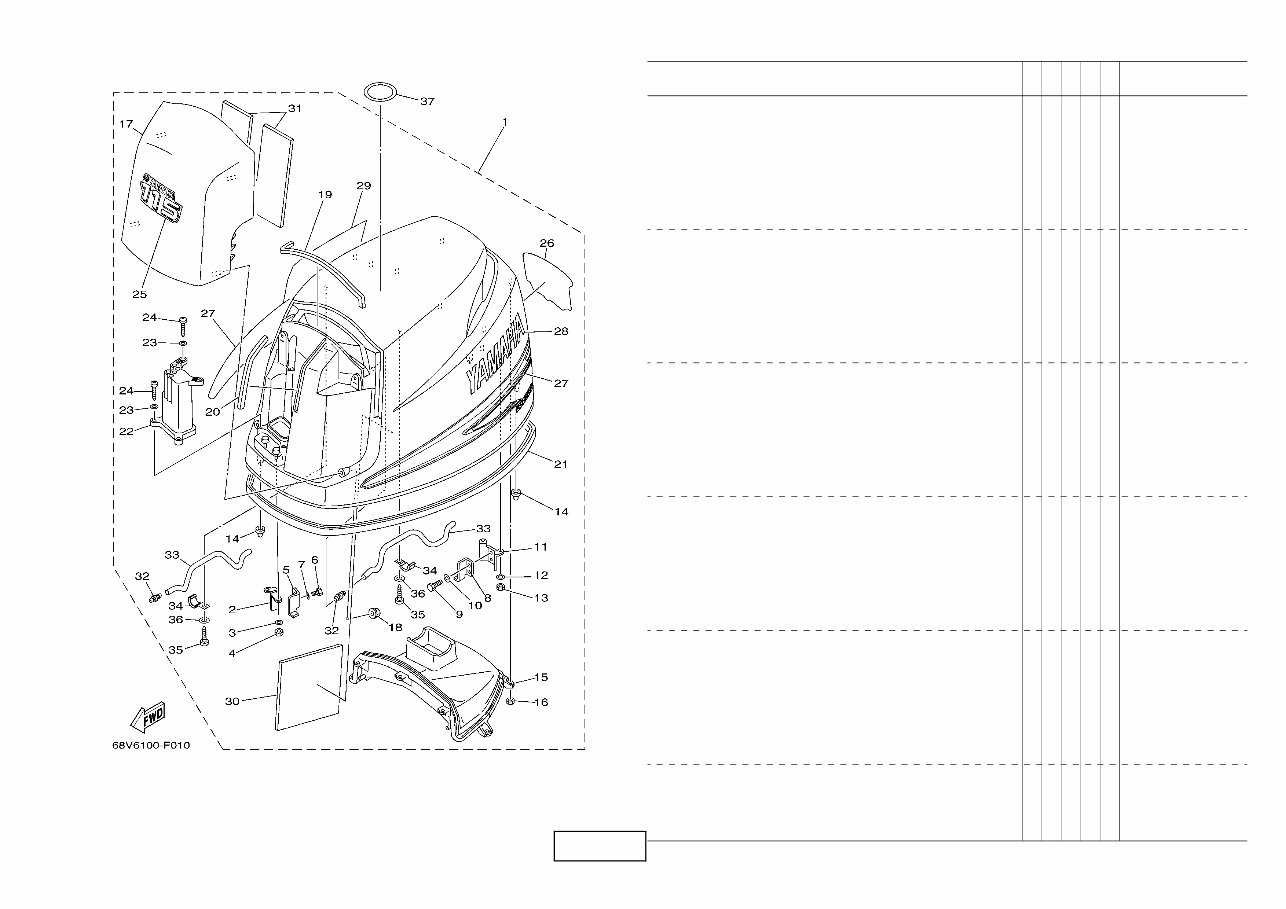

A 4 FIG. 1 TOP COWLING REF. NO. PART NO. DESCRIPTION 68V7 68W7 REMARKS 1 68V–42610–12–8D TOP COWLING ASSY 1 1 68V–42610–B2–8D TOP COWLING ASSY 1 F115TJR 2 68V–42647–00 .HOLDER, CLAMP BAND 1 1 3 92990–06100 .WASHER, SPRING 2 2 4 95380–06600 .NUT, HEXAGON 2 2 5 68V–42651–00 .HOOK 1 1 6 97095–06012 .BOLT 2 2 7 92995–06600 .WASHER 2 2 8 68V–42652–00 .HOOK 1 1 9 97095–06012 .BOLT 2 2 10 92995–06600 .WASHER 2 2 11 67F–42649–00 .HOLDER, CLAMP BAND 1 1 12 92990–06100 .WASHER, SPRING 2 2 13 95380–06600 .NUT, HEXAGON 2 2 14 67F–42662–00 .DAMPER 3 3 15 68V–42613–00 .MOLDING, AIR DUCT 1 1 16 95380–06600 .NUT, HEXAGON 7 7 17 68V–42612–00–8D .AIR DUCT, TOP COWLING 1 1 18 90179–06M28 .NUT 4 4 19 68V–42628–00 .SEAL 1 1 20 68V–42718–00 .RUBBER, SEAL 3 1 1 21 68V–42615–00 .SEAL 1 1 22 68V–42632–00 .WINDOW 1 1 23 92990–05200 .WASHER, PLAIN 4 4 24 97780–50625 .SCREW, TAPPING 4 4 25 68V–42677–10 .GRAPHIC, FRONT 1 1 68V–42677–A0 .GRAPHIC, FRONT 1 F115TJR

A 5 FIG. 1 TOP COWLING REF. NO. PART NO. DESCRIPTION 68V7 68W7 REMARKS 26 68V–42678–10 .GRAPHIC, REAR 1 1 68V–42678–B0 .GRAPHIC, REAR 1 F115TJR 27 68V–W0070–10 .GRAPHIC SET 1 1 28 68V–42681–10 .MARK, COWLING 1 1 29 68V–42682–10 .MARK, COWLING 1 1 30 68V–42617–00 .DAMPER, FORM 1 1 31 68V–42619–00 .DAMPER, FORM 2 2 32 6H3–44391–01 .NIPPLE, HOSE 2 2 33 90445–10M18 .HOSE (L295) 2 2 34 90465–08M63 .CLAMP 2 2 35 97780–50620 .SCREW, TAPPING 2 2 36 92990–05200 .WASHER, PLAIN 2 2 37 67F–13434–03 LABEL, CAUTION 1 1

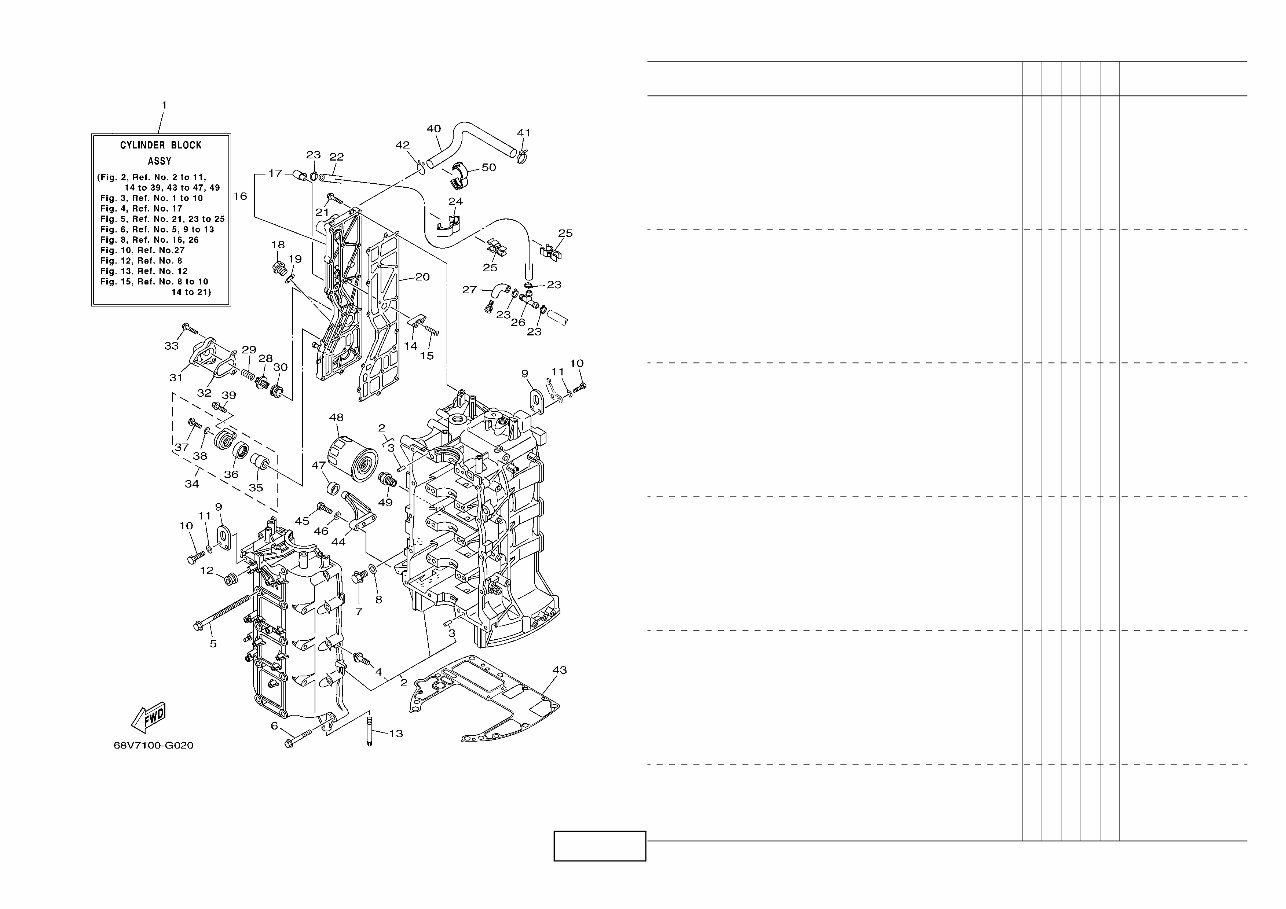

A 6 FIG. 2 CYLINDER & CRANKCASE 1 REF. NO. PART NO. DESCRIPTION 68V7 68W7 REMARKS 1 68V–W009B–08–1S CYLINDER BLOCK ASSY 1 1 2 68V–15100–02–1S CRANKCASE ASSY 1 1 3 93606–12019 .PIN, DOWEL 10 10 4 68V–44581–01 .BOLT 1 1 5 90119–10M88 BOLT, WITH WASHER 10 10 6 90119–08M66 BOLT, WITH WASHER 10 10 7 90340–14M06 PLUG, STRAIGHT SCREW 1 1 8 90430–14115 GASKET 1 1 9 62Y–11119–00 HANGER, ENGINE 2 2 10 97095–06020 BOLT 4 4 11 92995–06600 WASHER 4 4 12 90480–12072 GROMMET 1 1 13 67F–15142–00 GUIDE 1 2 2 14 6E5–11325–00 ANODE 3 3 15 98780–04016 SCREW, FLAT HEAD 3 3 16 6D8–41113–10–1S OUTER COVER, EXHAUST 1 1 17 676–11372–00 .NIPPLE, HOSE 1 1 18 90340–18M09 PLUG, STRAIGHT SCREW 1 1 19 90430–18130 GASKET 1 1 20 67F–41114–A2 GASKET, EXHAUST OUTER COVER 1 1 21 90119–06MA4 BOLT, WITH WASHER 18 18 22 68V–42541–00 PIPE 1 1 1 23 90465–11M10 CLAMP 4 4 24 90464–18004 CLAMP 1 1 25 90464–10010 CLAMP 2 2 26 688–24378–00 PIPE, JOINT 3 1 1 27 61A–24316–00 PIPE 6 1 1

A 7 FIG. 2 CYLINDER & CRANKCASE 1 REF. NO. PART NO. DESCRIPTION 68V7 68W7 REMARKS 28 6G5–12416–00 VALVE, PRESSURE CONTROL 1 1 29 90501–16M11 SPRING, COMPRESSION 1 1 30 90480–20M05 GROMMET 1 1 31 67F–1246A–01–1S COVER 1 1 1 32 67F–12435–A0 GASKET 1 1 33 90119–06MA2 BOLT, WITH WASHER 3 3 34 69J–11301–10 ANODE COVER ASSY 1 1 35 68V–11325–02 .ANODE 1 1 36 67F–11328–00 .GROMMET, ANODE 1 1 37 90105–06M07 .BOLT, FLANGE 1 1 38 90430–06M03 .GASKET 1 1 39 97575–08540 BOLT, WITH WASHER 1 1 40 67F–1243A–00 HOSE 1 1 1 41 90465–11M10 CLAMP 1 1 42 90467–20M15 CLIP 1 1 43 68V–11351–00 GASKET, CYLINDER 1 1 44 67F–42761–00–94 STOPPER 2 2 45 97095–06025 BOLT 4 4 46 92995–06600 WASHER 4 4 47 68F–44533–00 DAMPER, UPPER MOUNT RUBBER 2 2 48 5GH–13440–00 ELEMENT ASSY, OIL CLEANER 1 1 49 90401–20145 BOLT, UNION 1 1 50 90464–16001 CLAMP 1 1

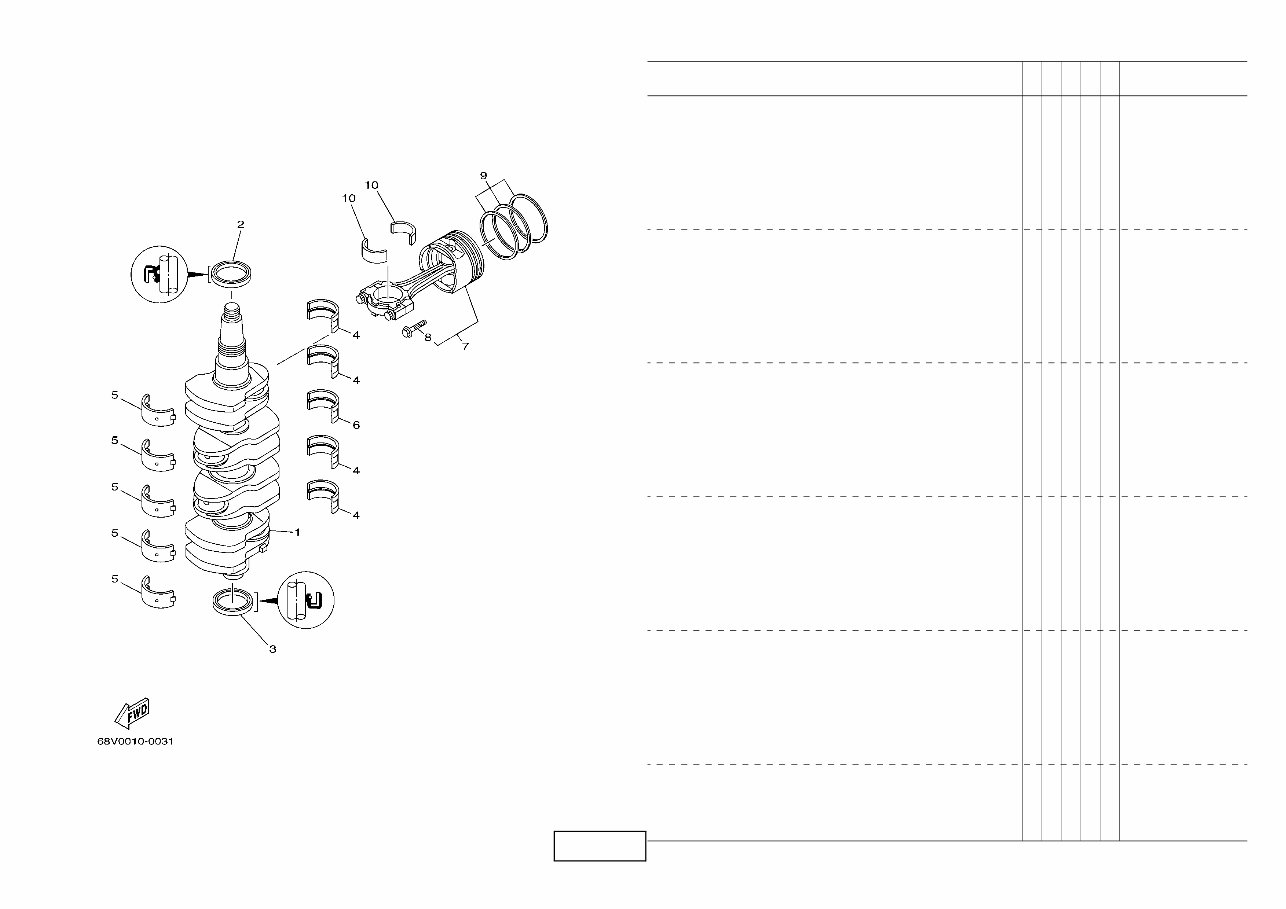

B 1 FIG. 3 CRANKSHAFT & PISTON REF. NO. PART NO. DESCRIPTION 68V7 68W7 REMARKS 1 68V–11411–00 CRANKSHAFT 1 1 2 93102–48009 OIL SEAL 1 1 3 93101–48002 OIL SEAL 1 1 4 67F–11416–00 PLANE BEARING, CRANKSHAFT 1 4 4 UR GREEN 67F–11416–10 PLANE BEARING, CRANKSHAFT 1 4 4 UR BLUE 67F–11416–20 PLANE BEARING, CRANKSHAFT 1 4 4 UR RED 5 67F–11417–00 PLANE BEARING, CRANKSHAFT 2 5 5 UR YELLOW 67F–11417–10 PLANE BEARING, CRANKSHAFT 2 5 5 UR GREEN 67F–11417–20 PLANE BEARING, CRANKSHAFT 2 5 5 UR BLUE 67F–11417–30 PLANE BEARING, CRANKSHAFT 2 5 5 UR RED 6 67F–11418–00 PLANE BEARING, CRANKSHAFT 3 1 1 UR GREEN 67F–11418–10 PLANE BEARING, CRANKSHAFT 3 1 1 UR BLUE 67F–11418–20 PLANE BEARING, CRANKSHAFT 3 1 1 UR RED 7 68V–W1164–01 PISTON/CON-ROD ASSY(STD) 4 4 68V–W1164–11 PISTON/CON-ROD ASSY(0.25MM OS) 4 4 AP 8 K1C–A3275–00 .BOLT, CONNECTING ROD 2 2 9 6D8–11603–01 PISTON RING SET (STD) 4 4 6D8–11604–01 PISTON RING SET (0.25MM O/S) 4 4 AP 10 68V–11656–00 PLANE BEARING, CONNECTING ROD 8 8 UR YELLOW 68V–11656–10 PLANE BEARING, CONNECTING ROD 8 8 UR GREEN 68V–11656–20 PLANE BEARING, CONNECTING ROD 8 8 UR BLUE 68V–11656–30 PLANE BEARING, CONNECTING ROD 8 8 UR RED

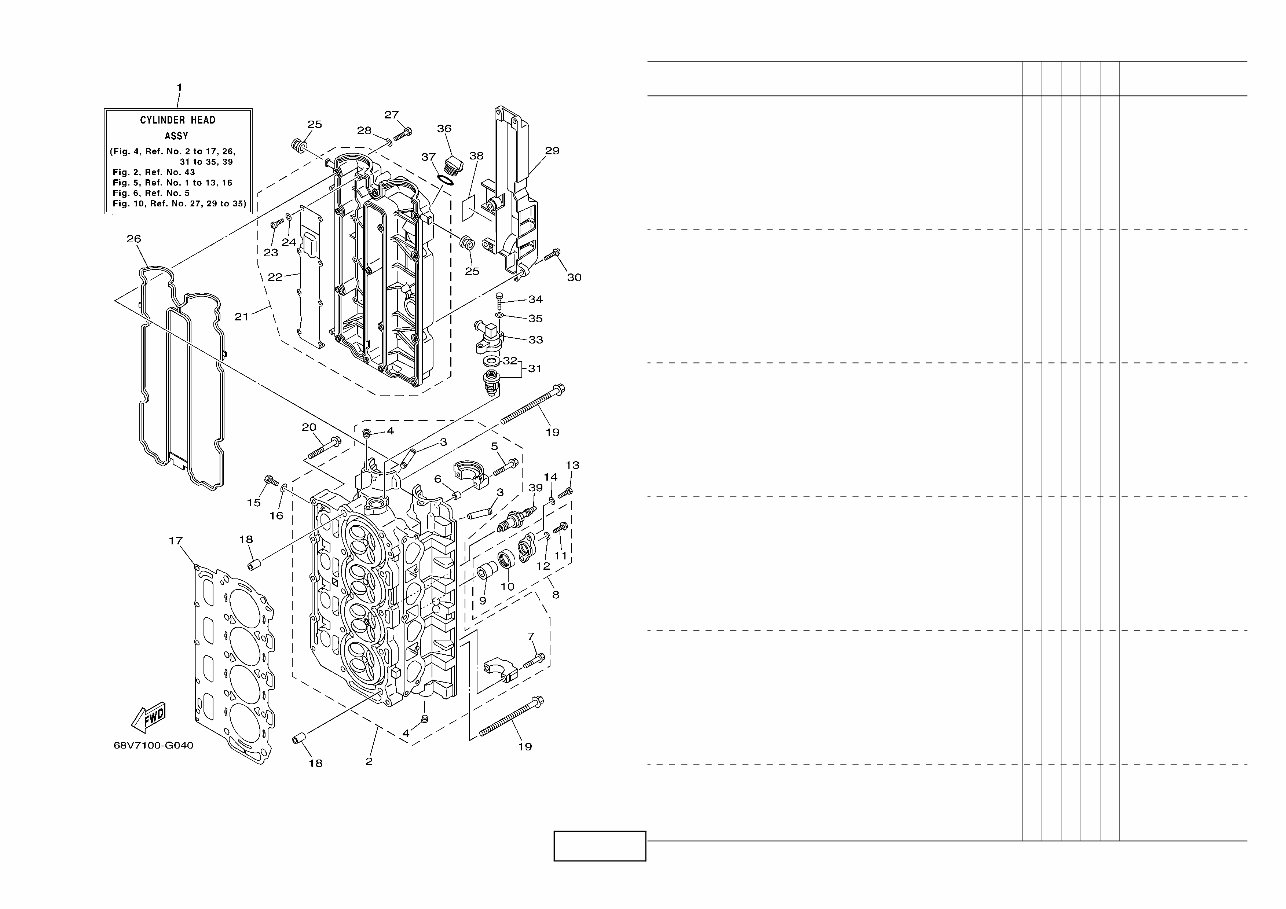

B 2 FIG. 4 CYLINDER & CRANKCASE 2 REF. NO. PART NO. DESCRIPTION 68V7 68W7 REMARKS 1 68V–W009A–05–1S CYLINDER HEAD ASSY 1 1 2 68V–11110–03–94 CYLINDER HEAD ASSY 1 1 3 67F–11133–10 .GUIDE, VALVE 1 16 16 4 90344–51019 .PLUG, TAPER SCREW 4 4 5 90119–07235 .BOLT/WASHER-CAM CAPS 4 4 6 91809–08006 .PIN, DOWEL 4 4 7 90119–07234 .BOLT, WITH WASHER 16 16 8 67F–11301–10 ANODE COVER ASSY 2 2 9 68V–11325–02 .ANODE 1 1 10 67F–11328–00 .GROMMET, ANODE 1 1 11 90105–06M07 .BOLT, FLANGE 1 1 12 90430–06M03 .GASKET 1 1 13 97075–08025 BOLT 4 4 14 92995–08600 WASHER 4 4 15 97095–08014 BOLT 4 4 16 90430–08143 GASKET 4 4 17 67F–11181–03 GASKET, CYLINDER HEAD 1 1 1 18 90387–10M08 COLLAR 2 2 19 90105–10M89 BOLT, FLANGE 10 10 20 90119–08M91 BOLT, WITH WASHER 5 5 21 68V–11191–00–1S COVER, CYLINDER HEAD 1 1 1 22 67F–11168–00 .COVER, BREATHER 1 1 23 98507–04008 .SCREW, PAN HEAD 8 8 24 92907–04600 .WASHER 8 8 25 90480–12072 GROMMET 2 2 26 6D8–11356–01 SEAL, CYLINDER 2 1 1 27 97095–06030 BOLT 14 14
